VECTOR X laserkaugusmõõtjaga binoklid

Vectronix Shooting Solutions Nimi VECTOR on nii kohustus kui ka lubadus tipptasemest. Seetõttu on VECTOR X palju enamat kui lihtsalt üks järjekordne kaugusmõõtjaga binokkel. See pakub ületamatut jõudlust, maksimaalset kasutusmugavust ja ainulaadseid funktsioone, mis on loodud kõige nõudlikumatele pikamaalaskuritele ja jahimeestele.

Põhiomadused:

Kaugusmõõtmine kuni 6 400 m – ülitäpne 905 nm laser (Class 1M)
Väga kitsas laserikiir – ainult 1.5 × 0.1 MRAD
Premium optika – ere, värvieneutraalne pilt ja lai vaateväli
Suurepärane valgusläbilaskvus – sobib ka hämaras jahipidamiseks
2 MRAD-retikli valikut – FinnAccuracy poolt disainitud, sobiv ka Range Enhanceriga
Intuitiivne juhtimine – D-Pad ja Active-Matrix OLED ekraan
Applied Ballistics Elite – automaatsed laskeandmed 800+ laskemoona jaoks
Lai ühenduvus – töötab Kestrel, Garmin ja teiste rakendustega
IP67 korpus – kerge, vastupidav magneesium + libisemiskindel kummikate
Alumiiniumist liikuvad osad – fookus, diopter ja silmapadjandid

Lisainfot leiad Vectronix Shooting Solutions koduleheküljelt.

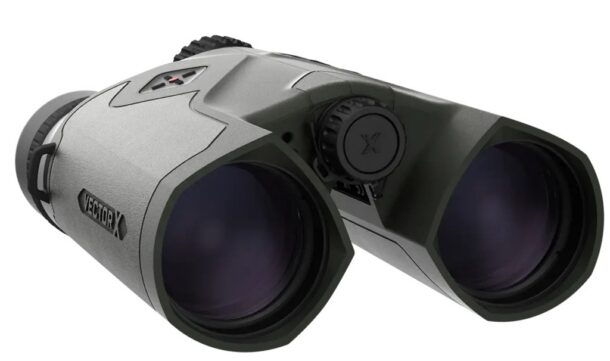

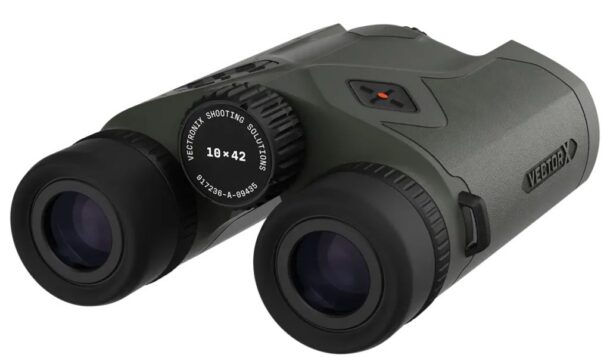

VECTOR X laserkaugusmõõtjaga binokkel

Tehnilised andmed:

	VECTOR X 8×42	VECTOR X 10×42	VECTOR X 12×42
Order numbers (Class 1 laser)	918821 with MSR-DMR reticle	918823 with MSR-DMR reticle	918825 with MSR-DMR reticle
	918820 with MSR-SMR reticle	918822 with MSR-SMR reticle	918824 with MSR-SMR reticle

Order numbers (Class 1M laser)	917234 with MSR-DMR reticle	917236 with MSR-DMR reticle	917238 with MSR-DMR reticle
	917233 with MSR-SMR reticle	917235 with MSR-SMR reticle	917237 with MSR-SMR reticle

Optics	VECTOR X 8×42	VECTOR X 10×42	VECTOR X 12×42
Observation	DVO, binocular
Objective lens diameter	42mm
Magnification	8x	10x	12x
Reticles	MSR-DMR (optimized for usage with Range Enhancers 42) MSR-SMR (optimized for usage without Range Enhancers 42)
Field of view at 1000m in degrees	130m, 7.4°	110m, 6.3°	91m, 5.2°
Field of view with Range Enhancers 42 at 1000m in degrees	92m, 5.3°	79m, 4.5°	65m, 3.7°
Exit pupil	5.25mm	4.2mm	3.5mm
Eye-relief	18mm	17mm	17mm
Interpupillary distance	58 to 77mm
Diopter compensation	±4dpt.
Nano coating on outer lenses	Yes
Twilight number	18.3	20.5	22.45

Rangefinder	VECTOR X 8×42	VECTOR X 10×42	VECTOR X 12×42
Laser type (Class 1M laser)	905nm, class 1M according to IEC 60825-1
Laser type (Class 1 laser)	905nm, class 1 according to IEC 60825-1
Range capability (Class 1M laser)
max range	2m to 6400m
tree	2m to 2800m
deer	2m to 2200m
Range capability (Class 1 laser)
max range	2m to 4000m
tree	2m to 2500m
deer	2m to 1800m
Specified performance (Class 1M laser)	2650m on 2.3m x 2.3m target; visibility: 10km, albedo 0.6, detection probability >90%
Specified performance (Class 1 laser)	1830m on 2.3m x 2.3m target; visibility: 10km, albedo 0.6, detection probability >90%
Accuracy	±1m at 9m to 100m
	±2 m at 100m to 500m
	<0.5% of distance beyond 500m
False alarm rate	<2%
Beam divergence (typical, Class 1M laser)	1.8 x 0.1 mrad	1.8 x 0.1 mrad	1.5 x 0.1 mrad
Beam divergence (typical, Class 1 laser)	0.6 x 0.1 mrad	0.6 x 0.1 mrad	0.5 x 0.1 mrad
Time per measurement	<0.25sec	<0.25sec	<0.25sec

Communication interface	VECTOR X 8×42	VECTOR X 10×42	VECTOR X 12×42
Wireless	Bluetooth® 5.1 LowEnergy

Physial	VECTOR X 8×42	VECTOR X 10×42	VECTOR X 12×42
Housing	magnesium
Armoring	shock absorbing rubber
Colour	tac-grey
Tripod	¼”–20 UNC standard tripod interface
Dimensions	163mm x 130mm x 65mm
Weight without battery	~1013g	~977g	~1015g
Front objective thread	M46 x 0.75

Ballistics	VECTOR X 8×42	VECTOR X 10×42	VECTOR X 12×42
Internal ballistics	Applied Ballistics® Elite
External ballistics	Applied Ballistics®, Hornady 4DOF®, Trasol
Kestrel	5700 Elite, 5700X Elite, 5700 Hornady 4DOF®
Garmin ballistic watches	Foretrex® 701/901, tactix® Delta, tactix® 7, instinct® 2X, Descent Mk 2i, Marq Commander Carbon, D2 Mach 1 Pro, etc.

Mapping	VECTOR X 8×42	VECTOR X 10×42	VECTOR X 12×42
Maps	Google Maps, BaseMap, CivTAC (plug-in required)

Mobile App	VECTOR X 8×42	VECTOR X 10×42	VECTOR X 12×42
Available for	iOS, Android

Digital magnetic compass and sensors	VECTOR X 8×42	VECTOR X 10×42	VECTOR X 12×42
Units	360°/6283mrad/6400mil
Azimuth accuracy (1б)	±5°
Maximum inclination	±89°/±1553mrad/±1582mil
Declination, adjustable	±179°

Others	VECTOR X 8×42	VECTOR X 10×42	VECTOR X 12×42
Temperature sensor	–20°Cto +50°C
Barometric pressure sensor	300hPa to 1100hPa

Display	VECTOR X 8×42	VECTOR X 10×42	VECTOR X 12×42
Type	AMOLED microdisplay
Brightness control	automatic/manual

Power supply	VECTOR X 8×42	VECTOR X 10×42	VECTOR X 12×42
Standard, on-board	1 x 3V lithium battery (CR123A)
Battery capacity	(20°C) >10000 measurements
Rechargable battery (optional)	Type 18650

Environmental	VECTOR X 8×42	VECTOR X 10×42	VECTOR X 12×42
Protection class	IP67 (waterproof 1 m 30min)
Operational temperature	–20°C to +50°C
Storage temperature	–40°C to +70°C
Shock	60g/6ms
Vibration	2g; 10Hz to 150Hz

Accessories	VECTOR X 8×42	VECTOR X 10×42	VECTOR X 12×42
Range Enhancers 42 (1.4x) incl. protective case	917239 (2 pcs)
Anti-Reflection Devices 42	917806 (2 pcs)

Spare parts	VECTOR X 8×42	VECTOR X 10×42	VECTOR X 12×42
Eyecup set for 8×42	919007 (2 pcs)
Eyecup set for 10×42/12×42	919008 (2 pcs)
Neck strap	917231 (1 pc)
Front lens flip cover 42	917232 (1 pc)
Range Enhancer 42 (1.4x)	918795 (1 pc)
Lens cover set for Range Enhancer 42 (front and rear)	919011 (2 pcs)
Eyepiece cover	919004 (1 pc)
Tripod adapter incl. screws and torx key	917802 (1 pc)
Tripod cover VECTOR X	919050 (1 pc)
Battery cover CR123A	919003 (1 pc)
Battery cover 18650	919052 (1 pc)
Clip for battery compartment cover incl. cord	919009 (1 pc)

Scope of delivery	VECTOR X 8×42	VECTOR X 10×42	VECTOR X 12×42
	Laser rangefinder binocular, neck strap, 2x front lens flip cover 42, eyepiece cover, protective case 42, tripod adapter incl. screws and torx key, additional battery cover 18650, CR123A 3V battery, VECSS logo patch, lens cleaning cloth, quickstart guide, safety instructions;
